Azure UDR Tips: A Deep Dive into Symmetric Routing and Longest Prefix Match

Phil Huang

22 Jul 2025 • 4 min read

Photo by Phil Huang@Ximending, Taipei, Taiwan

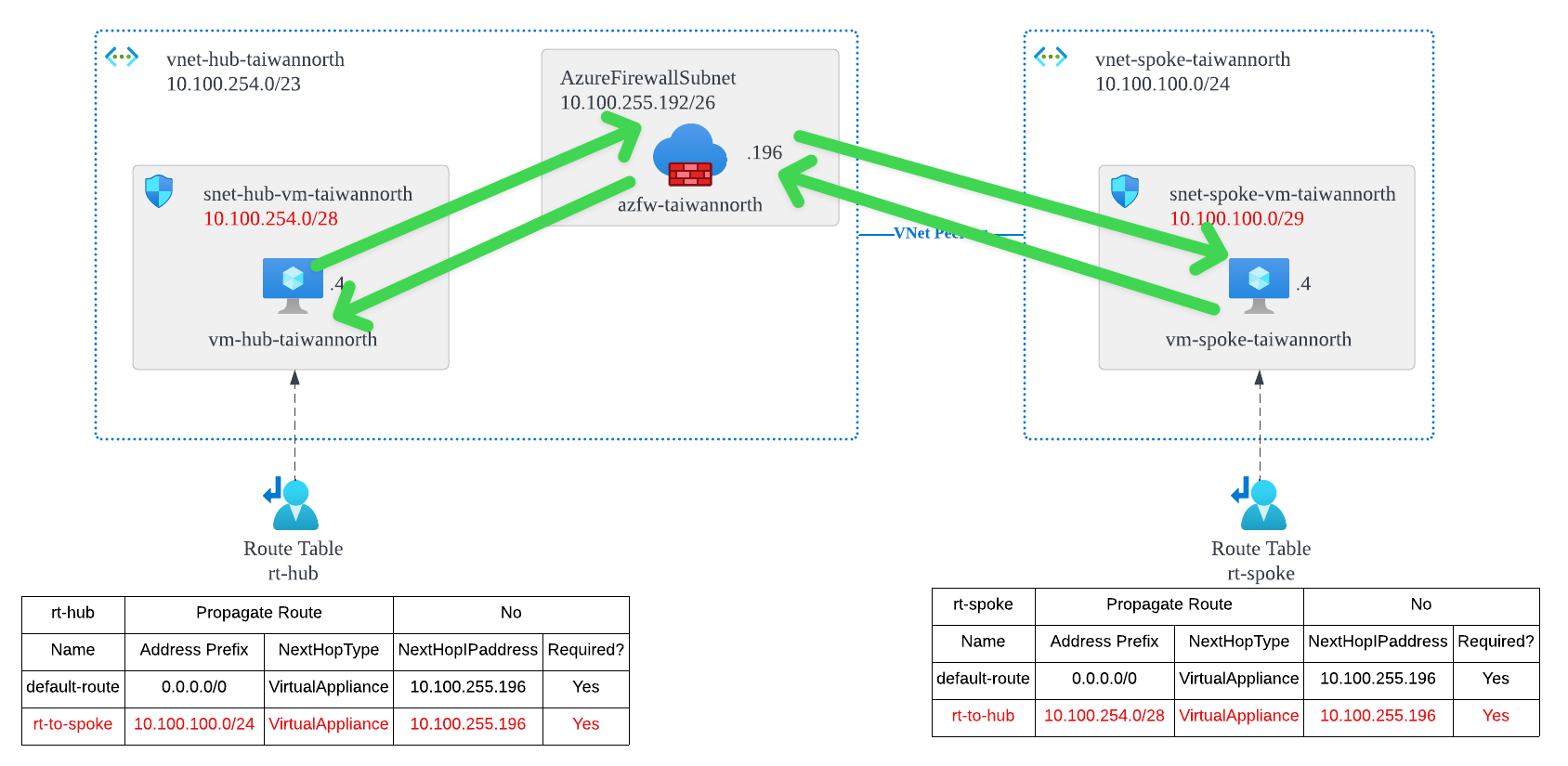

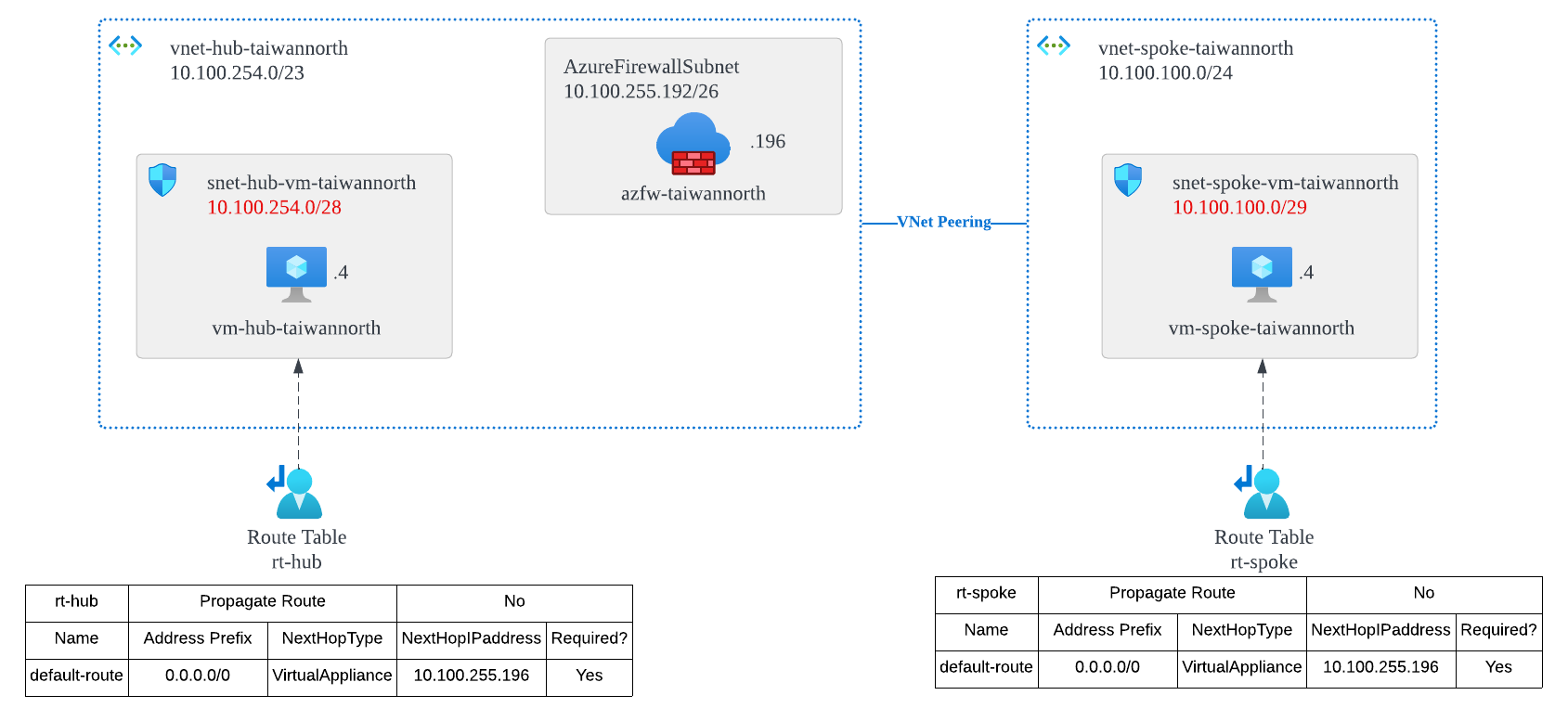

The diagram below shows a hub-spoke network architecture. We want the hub VM (vm-hub-taiwannorth) inside the hub to be able to connect to the spoke VM (vm-spoke-taiwannorth) inside the spoke through the Azure Firewall (azfw-taiwannorth)on the same VNet. In this situation, how should we define the UDR in the Azure route table to make sure symetric routing?

Environment

2 * Azure Virtual Network
- {10.100.254.0/24, 10.100.255.0/24} vnet-hub-taiwannorth
  - 10.100.254.0/28 snet-hub-vm-taiwannorth
  - 10.100.255.192/26 AzureFirewallSubnet
- 10.100.100.0/24 vnet-spoke-taiwannorth
  - 10.100.100.0/29 snet-spoke-vm-taiwannorth
2 * Azure Route Table
- rt-hub
- rt-spoke
3 * Necessary IP infomations
- 10.100.254.4 vm-hub-taiwannorth
- 10.100.255.196 azfw-taiwannorth
- 10.100.100.4 vm-spoke-taiwannorth

Problem: After setting up route, the traffic still does not go through Azure Firewall

If you are very familiar with Azure Network Hub-Spoke Topology, you should be very familiar with the following routing configuration if you want to force all 0.0.0.0/0 traffic to go through Azure Firewall

After you set it up this way, you will find that vm-hub-taiwannorth and vm-spoke-taiwannorth still do not communcate through the Azure Firewall

Root Cause: VNet Peering has default routes

The key lies in Azure Traffic Routing > Sysmte Routes > Default

If there are routes from VNet Peering, it will become like this:

Source	Address prefixed	Next hop type
Default	Unique to the virtual network	Virtual Network
Default	0.0.0.0/0	Internet
Default	Unique from Virtual Network Peering Address Space	VNet Peering

According to the rules above, let's go back and look at the effctive routes of these 2 VMs, as shown below:

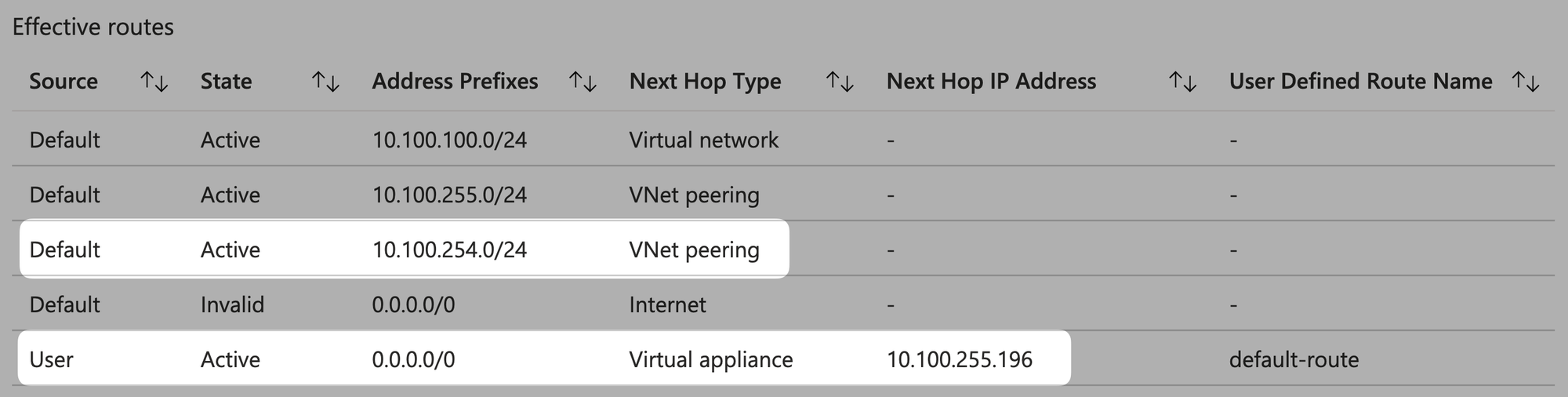

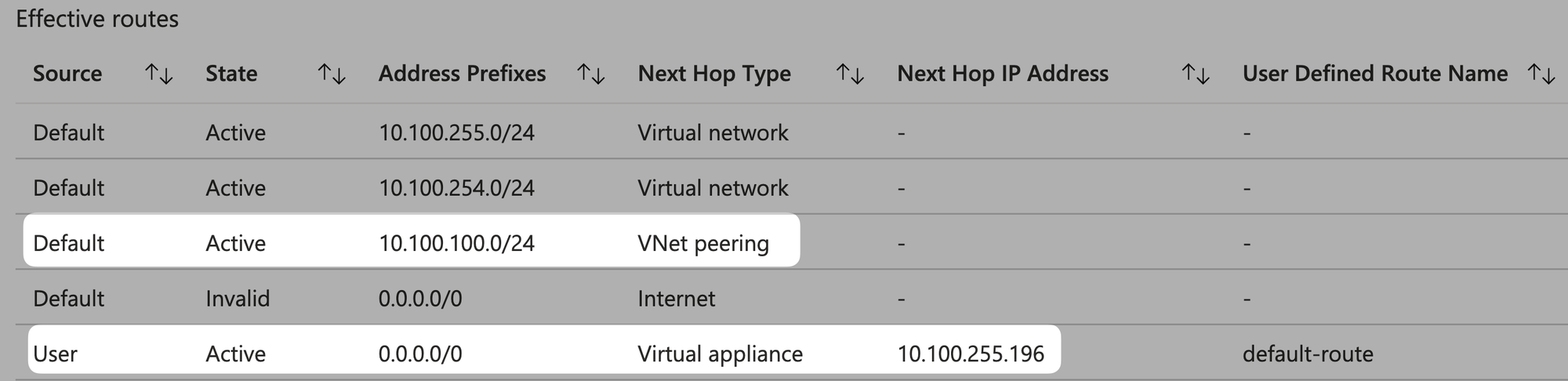

From the perspective of vm-hub-taiwannorth, view effective routes:

From the perspective of vm-spoke-taiwannorth, view effective routes:

As with most network routers, routing decisions are primarily based on Longest Prefix Match (LPM), so /24 prefix takes precedence over /0.

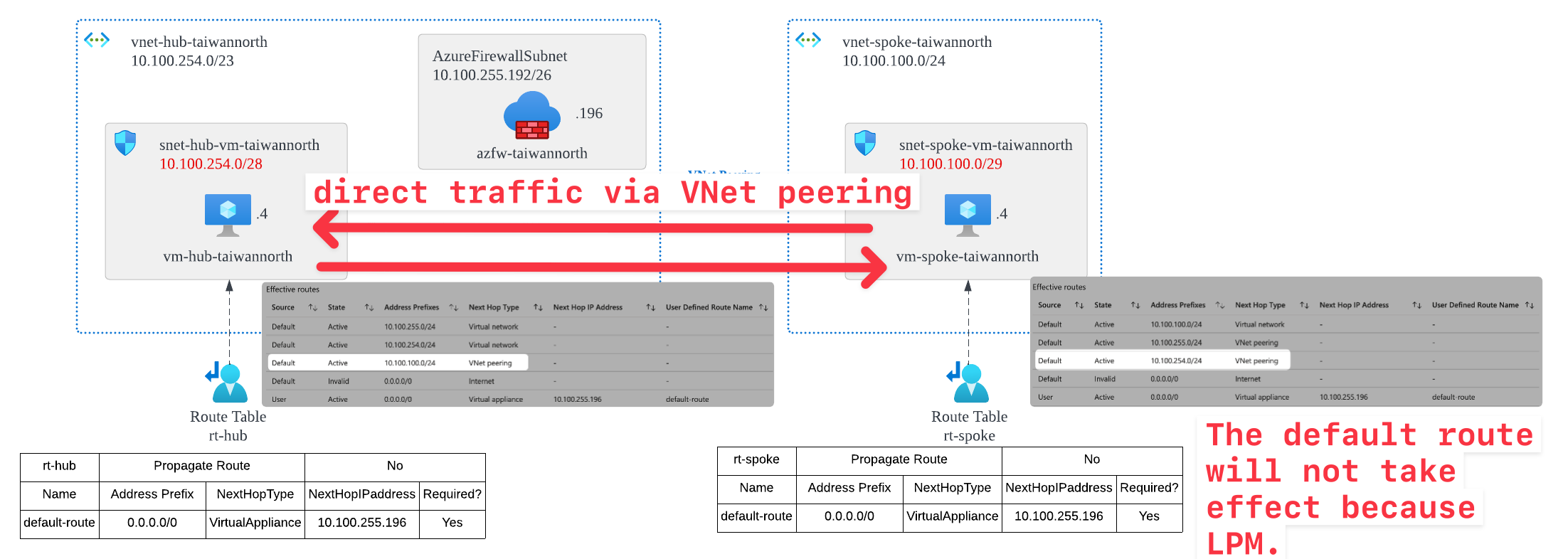

So... when the source IP of vm-hub-taiwannorth is 10.100.255.4 and the desination IP of vm-spoke-taiwannorth is 10.100.100.4, it will NOT route according to the default route 0.0.0.0/0 you hvae set. Instead, it will first use the directly connected Default system route 10.100.100.0/24 to reach the destination IP.

Solution: Add More Specific Routes

Add a route for the desitnation address prefix to prevent the default route of VNet Peering from taking precedence over 0.0.0.0/0.

Add New Route for Hub role

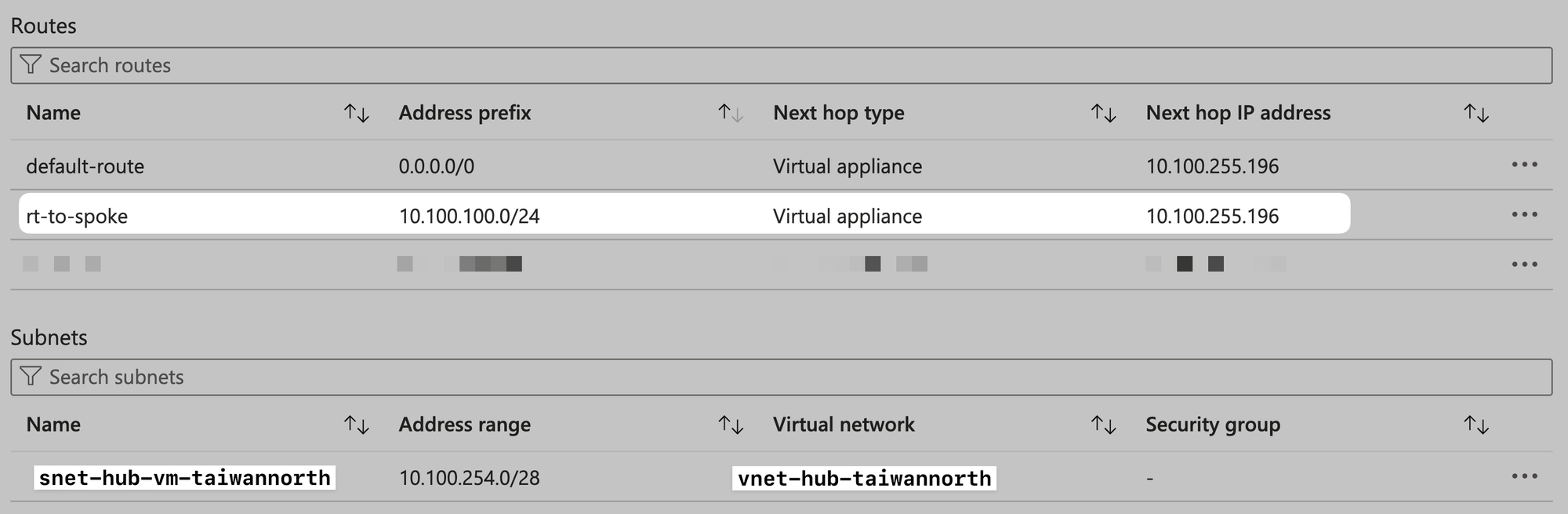

Add a new route, 10.100.100.0/24 NH 10.100.255.196, to override the default route 10.100.100.0/24 NH VNet Peering

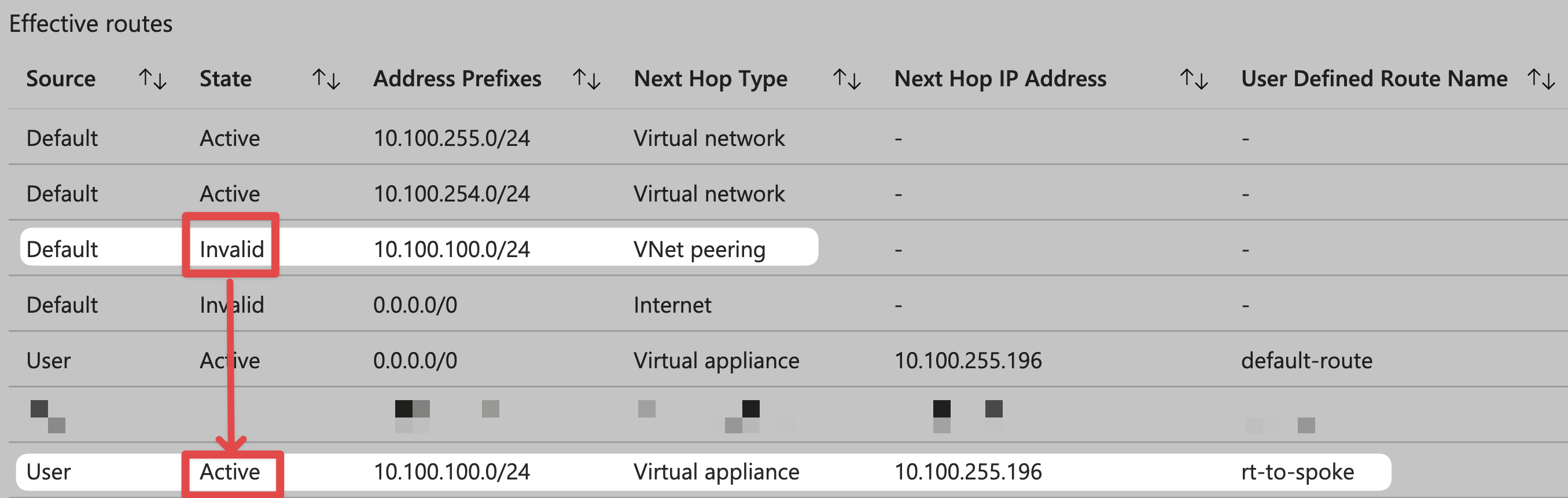

From the perspective of vm-hub-taiwannorth, view effective routes:

You will see that the defaulr route status of 10.100.100.0/24 has become Invalid from Active, and it has been replaced by the route we wrote ourselves.

Add New Route for Spoke role

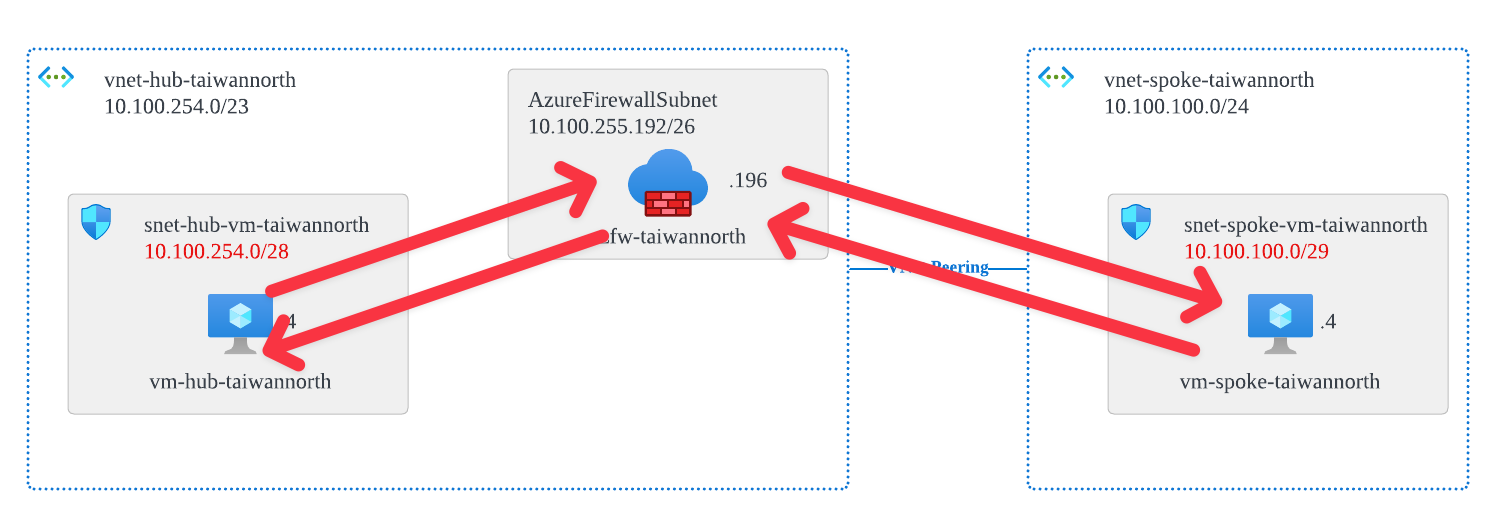

Add a new route, 10.100.254.0/28 NH 10.100.255.196, to ensure that traffic to vm-hub-taiwannorth (10.100.254.4) passws through Azure Firewall.

correct-route-table-vm-spoke-taiwannorth

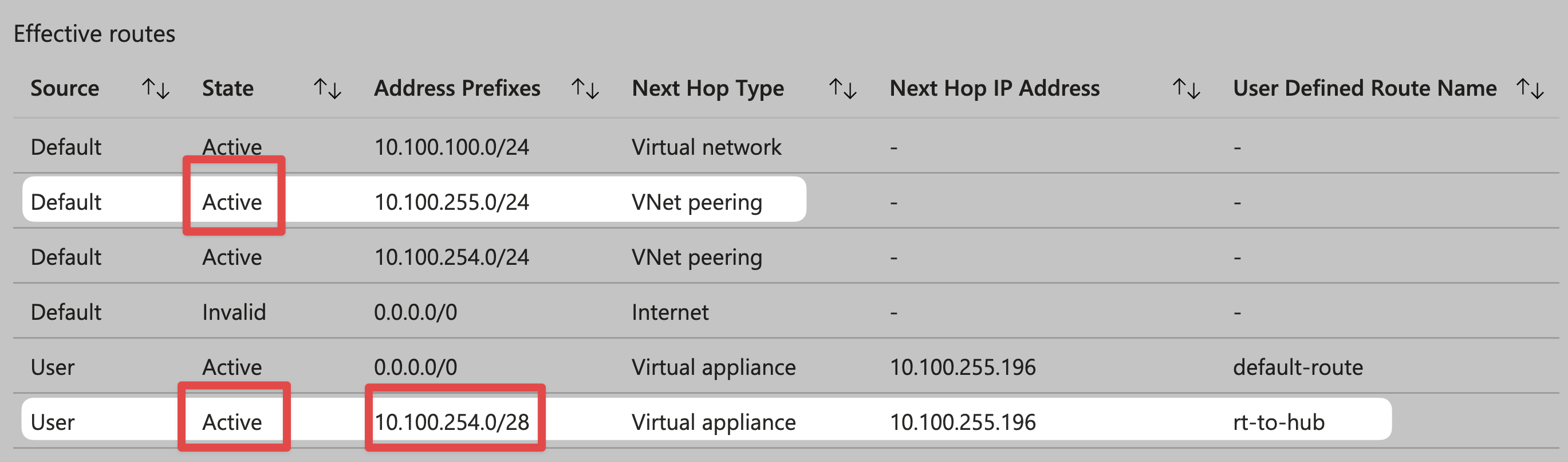

From the perspective of vm-spoke-taiwannorth, view effective routes:

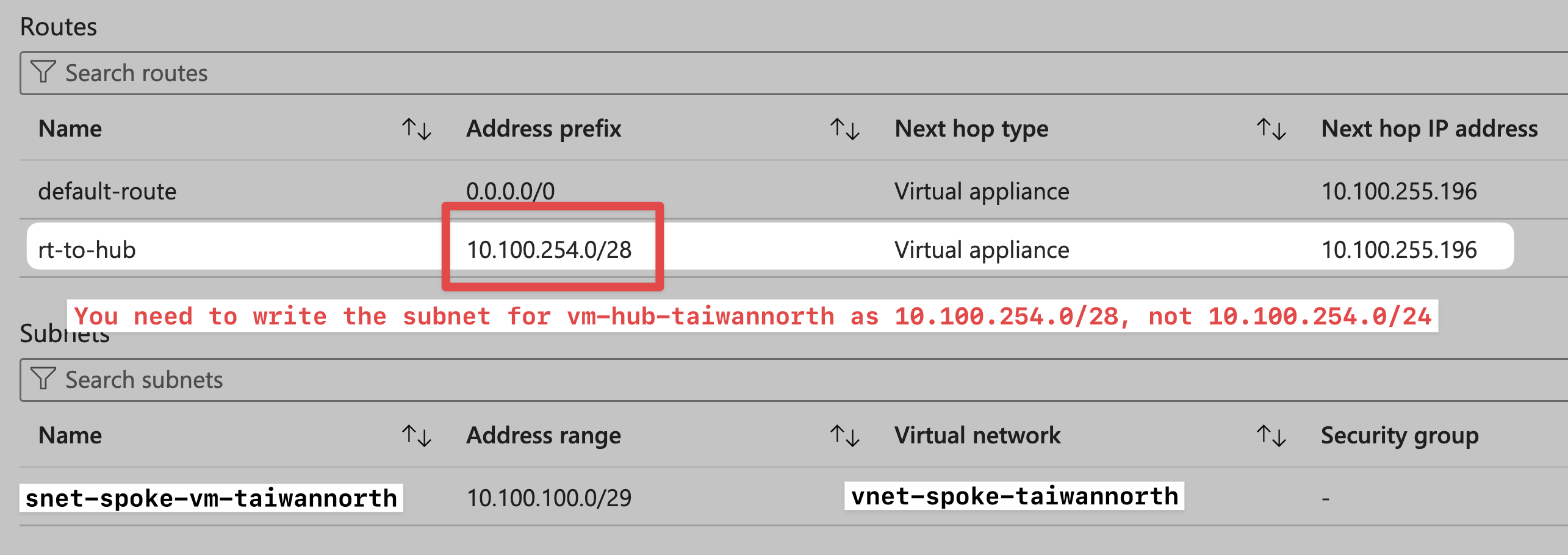

NOTE: You need to clearly know the subnet range (10.100.254.0/28) when vm-hub-taiwannorth is located, rather than directly entering the entire Hub VNet range (10.100.254.0/23). Doing so will cause vm-spoke-taiwannorth to be unable to route to the Azure Firewall Service if they are all placed under the same address prefix.

You May Need to Know

ALWAYS REMEMBER Longest Prefix Match (LPM)

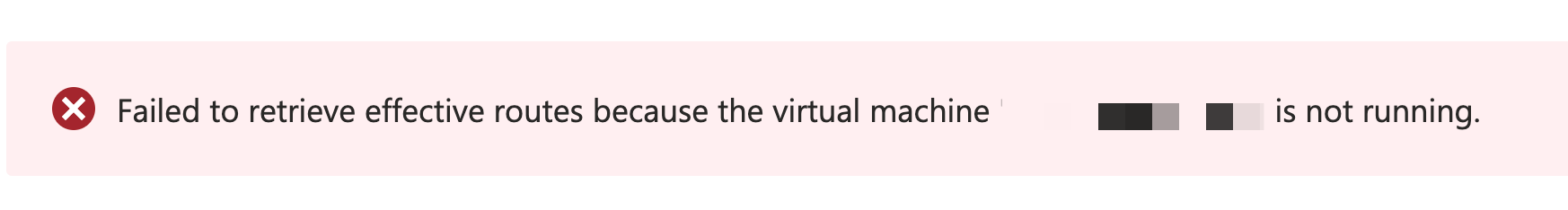

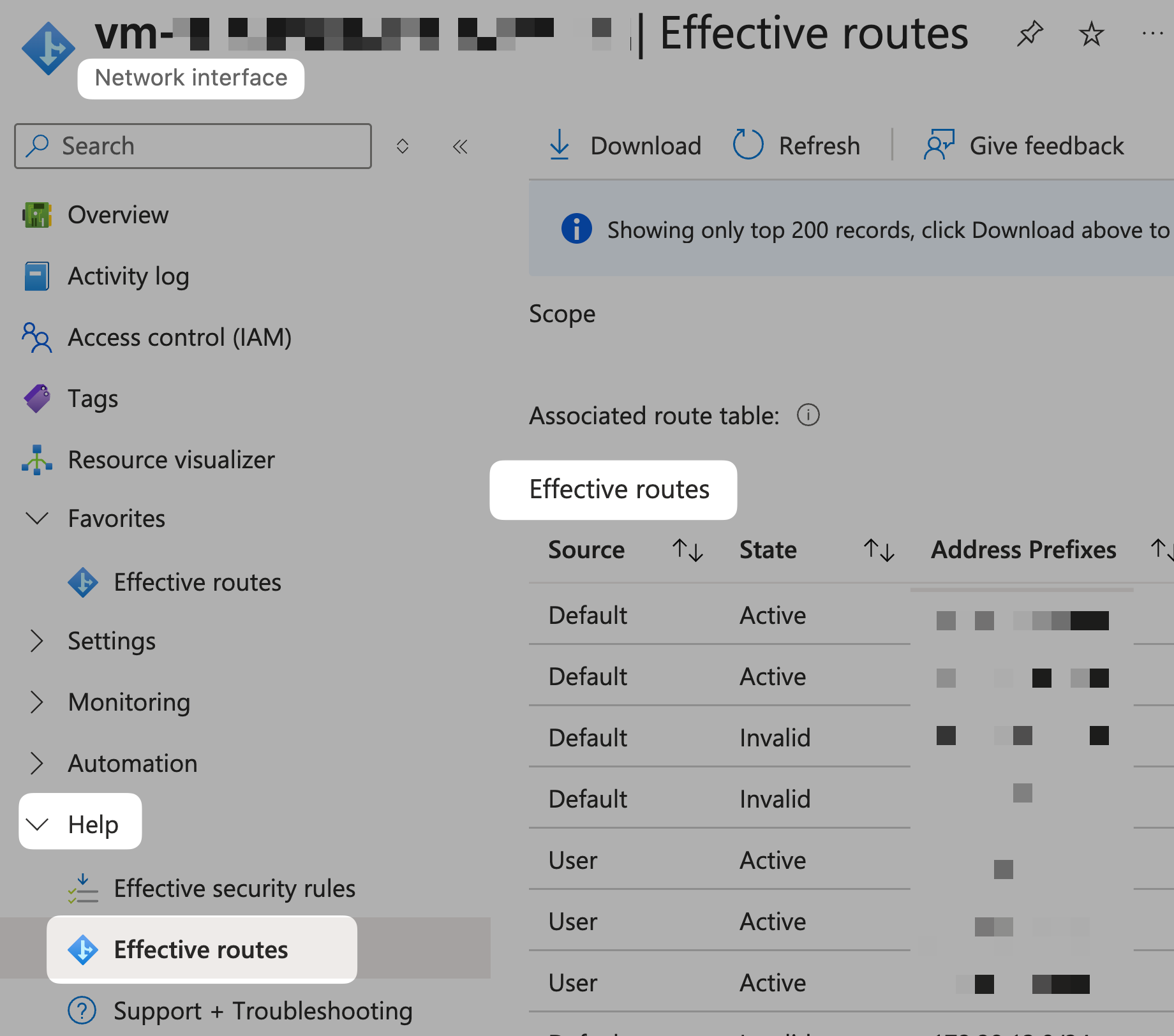

Remember to power on the Azure VM: By default, the Effective routes on the network interface card will ONLY have content after the Azure VM is powered on. if the Azure VM is not powered on, there will be no Effective Routes information generated.
